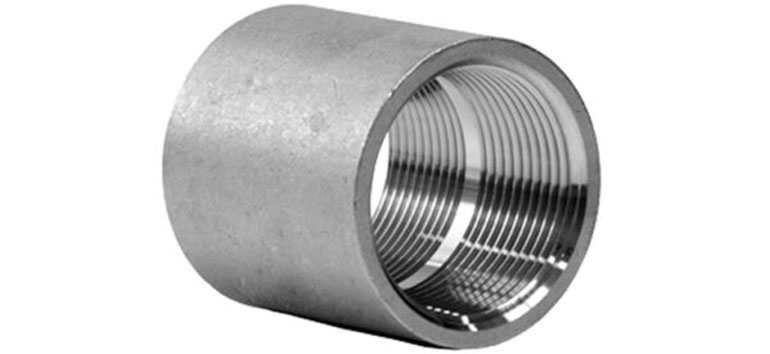

Nickel Alloy Forged Socket Weld Full Coupling :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) ,
UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) ,
UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625
(INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Stainless Steel Forged Socket Weld Full Coupling:
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI,
F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM
A312/A182 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Socket Weld Full Coupling :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Socket Weld Full Coupling :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106
GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM
/ ASME A 691 GR A, B & C
Alloy Steel Forged Socket Weld Full Coupling :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P
12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Socket Weld Full Coupling : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nominal Diameter |
Depth of Socket |
Dimension of Socket |
Wall Thickness | End Wall Thickness | The Lenth of Midst | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Cmin | Kmin | Coupling | Half-Coupling | |||||||||
DN | NPS (inches) | Jmin | d1 | 3000LB | 6000LB | 9000LB | 3000LB | 6000LB | 9000LB | E | F | |
6 | 1/8 | 10 | 10.7 | 3.2 | 3.5 | - | 5 | 6.5 | - | 6 | 16 | |
8 | 1/4 | 10 | 14.1 | 3.3 | 4 | - | 5 | 6.5 | - | 6 | 16 | |
10 | 3/8 | 10 | 17.5 | 3.5 | 4.4 | - | 5 | 6.5 | - | 6 | 17 | |
15 | 1/2 | 10 | 21.8 | 4.1 | 5.2 | 8.2 | 6.5 | 8 | 11 | 10 | 22 | |
20 | 3/4 | 13 | 27.4 | 4.3 | 6.1 | 8.6 | 6.5 | 8 | 12.5 | 10 | 24 | |
25 | 1 | 13 | 34.2 | 5 | 7 | 10 | 9.5 | 11 | 14 | 13 | 29 | |
32 | 1.1/4 | 13 | 42.9 | 5.3 | 7 | 10.6 | 9.5 | 11 | 14 | 13 | 30 | |
40 | 1.1/2 | 13 | 48.3 | 5.6 | 7.8 | 11.2 | 11 | 12.5 | 16 | 13 | 32 | |
50 | 2 | 13 | 61.1 | 6.1 | 9.5 | 12.2 | 12.5 | 16 | 19 | 19 | 41 | |
65 | 2.1/2 | 16 | 76.9(73.8) | 7.7 | 12.5 | - | 16 | 19 | - | 19 | 43 | |
80 | 3 | 16 | 89.8 | 8.3 | 13.8 | - | 19 | 22 | - | 19 | 45 | |
100 | 4 | 19 | 115.5 | 9.4 | - | - | 22 | 28.5 | - | 19 | 48 |
