Manufacturer,Stockist and Exporter of Reducer

Reducer

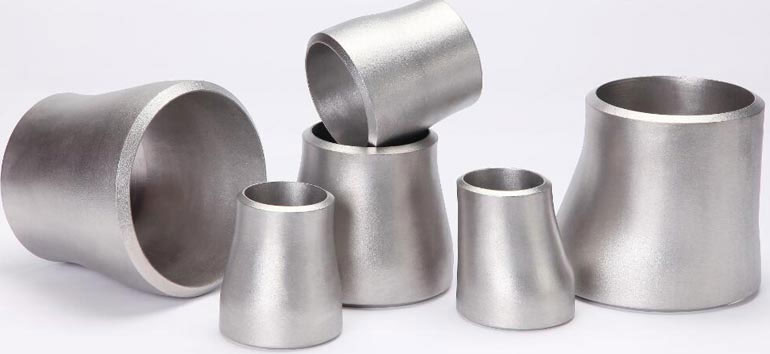

Our regular production and stock items include stainless steel reducers, carbon steel reducers, alloy steel reducers and duplex steel reducers. A steel pipe reducer is one of the most commonly used industrial pipe fitting, which helps to connect two pipes or tubes of different diameters. These are mainly used to adapt different pipe size in a pipeline system. Pipe reducers can mainly be categorized in two types – concentric reducer and eccentric reducer.

Raj -Bhoomi Engineers is a leading manufacturer, exporter and supplier of high quality and high performance steel eccentric reducers and steel concentric reducers in a variety of shapes and dimensions. Our products are manufactured as per ASTM, ASME, DIN, other international standards and as per custom requirement of our customers.

Buttweld Pipe Reducer Production Range – Concentric & Excentric

Outside Diameter:	Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″)
Types:	Concentric Reducers, Eccentric Reducers
Wall Thickness:	3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services:	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades:	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards– Pipe Reducer

ASME:	ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN:	DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN:	EN10253-1, EN10253-2

ASTM A403 – ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9	Factory-Made Wrought Fittings Buttwelding
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Reducer Material Grades

Stainless Steel Reducer	ASTM A403 WP Gr. 304L , 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Reducer	ASTM A420 WPL3, A420 WPL6
Alloy Steel Reducer	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Reducer	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Reducer	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Buttweld Fitting Reducer

Nominal Diameter		Outside Diameter	End to End
Nominal Diameter		D1*D2	End to End
DN	NPS (Inches)	Series A (mm)	"H"(mm)
20×15	3/4×1/2	26.9×21.3	38
20×10	3/4×3/8	26.9×17.3	38
25×20	1×3/4	33.7×26.9	51
25×15	1×1/2	33.7×21.3	51
32×25	1.1/4×1	42.4×33.7	51
32×20	1.1/4×3/4	42.4×26.9	51
32×15	1.1/4×1/2	42.4×21.3	51
40×32	1.1/2×1.1/4	48.3×42.4	64
40×25	1.1/2×1	48.3×33.7	64
40×20	1.1/2×3/4	48.3×26.9	64
40×15	1.1/2×1/2	48.3×21.3	64
50×40	2×1.1/2	60.3×48.3	76
50×32	2×1.1/4	60.3×42.4	76
50×25	2×1	60.3×33.7	76
50×20	2×3/4	60.3×26.9	76
65×50	2.1/2×2	73.0×60.3	89
65×40	2.1/2×1.1/2	73.0×48.3	89
65×32	2.1/2×1.1/4	73.0×42.4	89
65×25	2.1/2×1	73.0×33.7	89
80×65	3×2.1/2	88.9×73.0	89
80×50	3×2	88.9×60.3	89
80×40	3×1.1/2	88.9×48.3	89
80×32	3×1.1/4	88.9×42.4	89
90×80	3.1/2×3	101.6×88.9	102
90×65	3.1/2×2.1/2	101.6×73.0	102
90×50	3.1/2×2	101.6×60.3	102
90×40	3.1/2×1.1/2	101.6×48.3	102
90×32	3.1/2×1.1/4	101.6×42.4	102
100×90	4×3.1/2	114.3×101.6	102
100×80	4×3	114.3×88.9	102
100×65	4×2.1/2	114.3×73.0	102
100×50	4×2	114.3×60.3	102
100×40	4×1.1/2	114.3×48.3	102
125×100	5×4	141.3×114.3	127
125×90	5×3.1/2	141.3×101.6	127
125×80	5×3	141.3×88.9	127
125×65	5×2.1/2	141.3×73.0	127
125×50	5×2	141.3×60.3	127
150×125	6×5	168.3×141.3	140
150×100	6×5	168.3×114.3	140
150×90	6×3.1/2	168.3×101.6	140
150×80	6×3	168.3×88.9	140
150×65	6×2.1/2	168.3×73.0	140
200×150	8×6	219.1×168.3	152
200×125	8×5	219.1×141.3	152
200×100	8×4	219.1×114.3	152
200×90	8×3.1/2	219.1×101.6	152
250×200	10×8	273.0×219.1	178
250×150	10×6	273.0×168.3	178
250×125	10×5	273.0×141.3	178
250×100	10×4	273.0×114.3	178
300×250	12×10	323.9×273.1	203
300×200	12×8	323.9×219.1	203
300×150	12×6	323.9×168.3	203
300×125	12×5	323.9×141.3	203
350×300	14×12	355.6×323.9	330
350×250	14×10	355.6×273.0	330
350×200	14×8	355.6×219.1	330
350×150	14×6	355.6×168.3	330
400×350	16×14	406.4×355.6	356
400×300	16×12	406.4×323.9	356
400×250	16×10	406.4×273.0	356
400×200	16×8	406.4×219.1	356
450×400	18×16	457×406.4	381
450×350	18×14	457×355.6	381
450×300	18×12	457×323.9	381
450×250	18×10	457×273.0	381
500×450	20×18	508×457	508
500×400	20×16	508×406.4	508
500×350	20×14	508×355.6	508
500×300	20×12	508×323.9	508
550×500	22×20	559×508	508
550×450	22×18	559×457	508
550×400	22×16	559×406.4	508
550×350	22×14	559×355.6	508
600×550	24×22	610×559	508
600×500	24×20	610×508	508
600×450	24×18	610×457	508
600×400	24×22	610×406.4	508
650×600	26×24	660×610	610
650×550	26×22	660×559	610
650×500	26×20	660×508	610
650×450	26×18	660×457	610
700×650	28×26	711×660	610
700×600	28×24	711×610	610
700×550	28×22	711×559	610
700×500	28×20	711×508	610
750×700	30×28	762×711	610
750×650	30×26	762×660	610
750×600	30×24	762×610	610
750×550	30×22	762×559	610
800×750	32×30	813×762	610
