Valves
Our organization is dedicatedly engaged in providing customers with a wide range of Valves Fittings. These products are manufactured by the professionals to highest quality standards and can be availed by them in a broad range of size, material and configurations as per their needs.
Valves and valve fittings are devices that control, regulate, or guide flow within one process or system during their most basic level. Stainless steel valves are likely to assist whether you want to manage the flow and ensure safety in a system piping liquids, solids, gases, or everything in between.
Types Of Tube Fittings:
Square Ball Valve
They are typically used to connect a pipe or tube to a female fitting or valve. The male connector has a male thread on one end and a barbed end on the other that can be inserted into a tube or hose. The male thread can be connected to a female fitting, valve, or other types of connection.
| Valve Size | 1/8" TO 2" / 6 MM TO 50 MM |
| Shape | Square |
| Thread | NPT, BSPP, BSPT, JIC, METRIC, UNF |
| Function | 2 WAY, 3 WAY, 4 WAY, 5 WAY, |
| Pressure Rating | 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI |
| ISO Certified | Yes |
Ball Valve
A ball valve is a type of valve that uses a hollow, pivoting ball to control the flow of a medium through itself. If the hole of the ball is in line with the flow, the valve is open, and it is closed when the valve handle has been used to pivot the ball ninety degrees.
| Material | Stainless Steel |
| Steel Grade | 304 |
| Valve Size | 1/2" |
| Size | 1/2"-2" |
| Pipe Thread Size | 1/2 |
| ISO Certified | Yes |

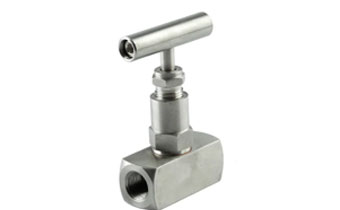

Needle Valves
A needle valve is used to accurately control flow rates of clean gasses or liquids. Gradual adjustments of the stem and plunger enable smooth flow control. These valves generally have low flow rates and a relatively significant pressure drop from the inlet to the outlet.
| Size Range | 1/4" to 1" |
| Material | Steel |
| Applicable Medium | Water, General Oil |
| Model | NVS-01, NVS-02, NVS-03, NVS-04, NVS-05 |
| Port Size | 1/8" |
| Media Pressure | 0 to 408 Bar |
| ISO Certified | Yes |

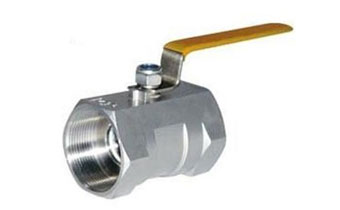

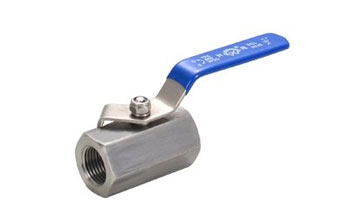

Hex Ball Valve
Instrument grade ball valves are primarily used as a block valve for instruments, drain valves, on/off valves for panel and systems, and many other applications and OEM equipment. This cost effective line of ball valves offer several pressure ratings, end connection options (upon request) and sizes.
| Material | Mild Steel |
| Pressure | High Pressure |
| Size | 20mm |
| Media | Water |
| Temperature Range | 10-200 Degree C |
| Coating | Chrome |

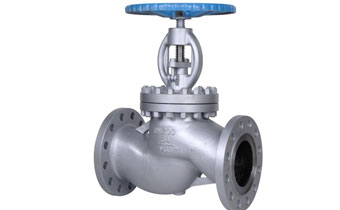

Globe Valve
Globe valve can be used for regulating flow or pressures as well as complete shutoff of flow. It may also be used sometime as a pressure relief valve or as a check valve. Compared with a gate valve or ball valve, the globe valve has considerably higher pressure loss in the fully open position.
| Power | Manual |
| Finish | Polished |
| Material | Stainless Steel |
| Media | Water, Oil, Gas |
| Testing Standard | ISO 5208 |
| Size | 15 mm to 600 mm |
| ISO Certified | Yes |
| Ends | Flanged End, Butt Weld End |

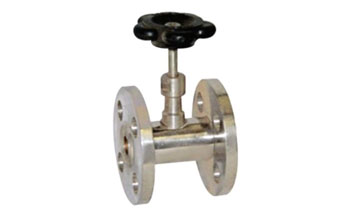

Flange End Needle Valve
It is used for joining two lengths of pipe together that are not locked in place and can be turned. A union is used when you are trying to join two pipes together that are fixed, thus unable to be turned.
| Sizes | 1/8" TO 2" (3 mm to 50 mm) Max Pressure:pressure -150#, 300#,600# |
| Material of Construction | AISI 304 ,AISI-316(CF 8 M), AISI 316 L (A 351 CF3,CF3M ), GUN METAL, ALUMINIMUM BRONZE, HAST ALLOYS, CARBON STEEL,FORGED CARBON STEEL-A 105. |
| End Connections | ASA 150 CLASS,300 CLASS , 600 CLASS |
| Flanges End | FlANGED END ANSI B 16.5 RF, BS 1560 |
| Material | Stainless Steel |
Flange End Ball Valve
A Flange end ball valve is a full bore ball valve with a flanged connection. The usage of the flange end ball valve is to allow or stop the flow in the pipeline system and ensure the pressure within a pipeline system or process.
| Size | 1/2” to 6” |
| Material | Stainless Steel SS316 , Cast Steel |
| Working Pressure | 10kg/cm² |
| Connection Type | JIS 10K, PN10/16, ANSI 150# |
| Usage/Application | Water |
| Pressure | Medium Pressure |

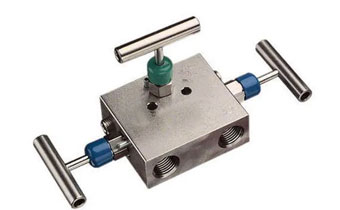

3 Way Manifold T Type
They can be used to mix fluids. It has fewer connections which improves the layout and reduced their chances of leakage. 3 Way T Type Manifold that is directly mounted is less expensive and easy to maintain and install. Three Way Manifold Valve mounted directly has fewer leakage points and has an integrated valve.
| Usage | For Industrial Use |
| Size | 1-4 Inch |
| Pressure | High Pressure kgf/cm2 |
| Color | Silver |
| Type | 3 Way Manifold T type |

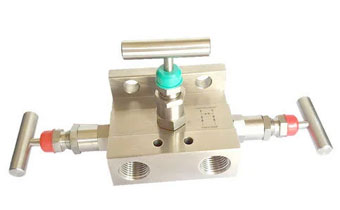

3 Way Manifold R Type
3 Way R Type Manifold Valve has 3 openings 2 inlets, and 1 outlet. They can be used to mix fluids. It has fewer connections which improves the layout and reduced their chances of leakage. 3 Way T Type Manifold that is directly mounted is less expensive and easy to maintain and install.
| Usage/Application | For Industrial Use |
| Pressure | Low Pressure, Medium Pressure, High Pressure |
| Valve Size | 1/2" , 1/4 " 1 " ETC |
| Model Name/Number | 3 WAY - R TYPE |
| Size | 1/2" , 1/4 " 1 " ETC |

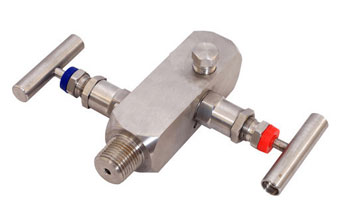

2 Way Manifold RM Type
2 Way Manifold Valve For Pressure Gauge is also known as the block and bleed valve and is connected to a pressure generator to test pressure. These valves are compact in size and reduce costs and connections. 2 way R Type Manifold Valve is designed for remote installation of differential pressure transmitters.
| Size | 1/2 inch |
| Tip | A564-630(17-4PH) |
| Body Material | SS 304/SS316 |
| Anti Dust Cap | Silicon Rubber |
| Gland Packing | PTFE Up To 240 Degree Celsius |
| Permissible Pressure Rating | 6000 PSI @ 100 Degree Celsius |

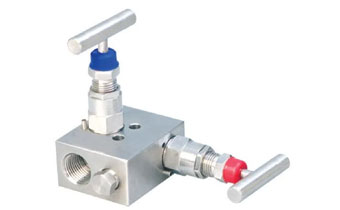

2 Way Manifold R Type
2 way R Type Manifold Valve is designed for remote installation of differential pressure transmitters. These valves are available in different series. 2 Way Manifold Valve R Type Remote Mounting has 2 types of process connections the traditional and the coplanar.
| Material | SS 316, SS 304, Monel,C.S. - End connection : NPT,BSPT,Socket weld. |
| Tip | A564-630(17-4PH) |
| Size | 1/2" |
| Type | R TYPE |
| Country of Origin | Made in India |
| Body Shape | Square, Rectangle |
| Pressure Rating | 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI |
| Function | 2 WAY, 3 WAY |
