Manufacturer,Stockist and Exporter of A105 1500# Blind Flange

A105 1500# Blind Flange, A105 1500# Blind Flange, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,ASTM A105 Blind Flange,ANSI B16.47 Series A Blind Flange

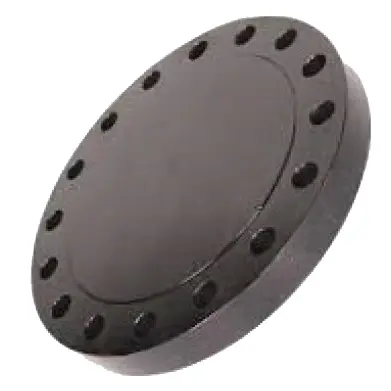

A105 1500# Blind Flange is a high-pressure forged carbon steel flange, commonly used to seal the ends of piping systems or pressure vessels. Known for its durability and strength, this flange is particularly suited for high-pressure and high-temperature applications. The A105 specification refers to forged carbon steel piping components, while the 1500 class rating indicates its pressure tolerance, making it ideal for demanding industrial sectors such as oil & gas, petrochemicals, power generation, and marine engineering.

Raj Bhoomi Engineers is a prominent manufacturer, stockist, and exporter of A105 1500# Blind Flanges, delivering superior-quality products that comply with global industry standards. With a fully equipped manufacturing unit and a team of skilled professionals, the company ensures that every flange is precision-forged, rigorously tested, and certified for performance and safety. Their in-house capabilities allow them to cater to bulk and customized orders with consistency and speed.

As a trusted stockist, Raj Bhoomi Engineers maintains a comprehensive inventory of A105 1500# Blind Flanges in various sizes, pressure classes, and specifications. Their warehousing systems are optimized to ensure quick dispatch and reliable supply chains across multiple continents. This readiness enables them to meet the fast-paced requirements of both domestic and international clients efficiently.

Raj Bhoomi Engineers exports its high-performance A105 1500# Blind Flange products to key global markets including Oman, Qatar, Saudi Arabia, UAE, and Kuwait in the Middle East; Spain and Germany in Europe; as well as the USA, Canada, and multiple countries across Africa. Their flanges are widely recognized for their dimensional accuracy, corrosion resistance, and reliable sealing properties under extreme operating conditions.

Specification of A105 1500# Blind Flange

Specification	Details
Product Name	A105 1500 Blind Flange
Material	ASTM A105 – Carbon Steel (Forged)
Pressure Class	1500# (Class 1500)
Type	Blind Flange (used to seal the end of a pipe or nozzle)
Face Type	Raised Face (RF), Ring Type Joint (RTJ) – as per requirement
Size Range	½" to 24" (custom sizes available on request)
Dimensions	As per ASME B16.5 / B16.47 Standard
Design Standard	ANSI / ASME / API / DIN / EN / BS (on request)
Temperature Range	Suitable for high-temperature services (up to approx. 593°C / 1100°F)
Pressure-Temperature Rating	As per ASME B16.5 Class 1500
Surface Finish	CNC Machined with 125–250 AARH finish (as per standard)
Testing & Certification	Hydro Test, PMI Test, MTC EN 10204 3.1 / 3.2, Third-Party Inspection
Applications	Oil & Gas, Petrochemical, Power Plants, Refineries, Marine, Water Works

What sets Raj Bhoomi Engineers apart in the global flange market is their commitment to quality, competitive pricing, and customer-centric approach. Their products adhere to international standards such as ASME, ANSI, and API, ensuring compatibility with piping systems around the world. Moreover, their export operations are streamlined through partnerships with trusted logistic providers to ensure timely and secure deliveries.

if you are sourcing a dependable and robust A105 1500# Blind Flange, Raj Bhoomi Engineers stands out as a leading name in manufacturing and global supply. Their industry expertise, technical excellence, and wide-reaching export network make them a preferred partner for critical infrastructure projects worldwide.

A105 1500# Blind Flange Chemical Properties

Element	Composition (%)
Carbon (C)	0.35 max
Manganese (Mn)	0.60 – 1.05
Phosphorus (P)	0.035 max
Sulfur (S)	0.040 max
Silicon (Si)	0.10 – 0.35
Copper (Cu)	0.40 max (if specified)
Nickel (Ni)	0.40 max (if specified)
Chromium (Cr)	0.30 max (if specified)
Molybdenum (Mo)	0.12 max (if specified)
Vanadium (V)	0.08 max (if specified)

A105 1500# Blind Flange Mechanical Properties

Property	Value	Notes
Tensile Strength	485 MPa (70 ksi) min	Indicates the maximum stress before breaking
Yield Strength	250 MPa (36 ksi) min	Stress at which permanent deformation occurs
Elongation	22% min (in 50 mm)	Shows ductility under tensile stress
Reduction of Area	30% min	Indicates ductility
Hardness	187 HB max (Brinell Hardness)	As per ASTM A105 standard
Impact Test (if required)	Per ASTM A105 or client spec	Typically done at low temperatures if needed
Heat Treatment	Normally supplied in normalized, forged, or normalized & tempered condition	For improved grain structure and strength

Features of A105 1500# Blind Flange

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of A105 1500# Blind Flange

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	ANSI B16.47 Series A Blind Flange
ANSI B16.47 Series B Blind Flange	MSS SP-44 A105 Blind Flange
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals

FAQs – A105 1500# Blind Flange:

1.What is an A105 1500# Blind Flange?

An A105 1500# Blind Flange is a forged carbon steel flange designed to close the end of a high-pressure pipeline or vessel. “A105” refers to the ASTM specification for carbon steel, and “1500#” indicates the pressure class rating as per ASME standards.

2.Which standards apply to A105 1500# Blind Flanges?

They are manufactured in accordance with ASME B16.5 for sizes up to 24 inches and ASME B16.47 for larger diameters, ensuring compliance with ASTM A105 material properties.

3. Where are A105 1500# Blind Flanges commonly used?

These flanges are used in high-pressure oil & gas pipelines, offshore platforms, refineries, chemical plants, and power generation systems where strong sealing is required.

4. Can A105 1500# Blind Flanges be customized?

Yes, they can be provided with special facing types (RF, RTJ), coatings, drilling patterns, or machining to suit specific operational requirements.
