Manufacturer,Stockist and Exporter of A105 RF Blind Flange

A105 RF Blind Flange, A105 RF Blind Flange, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,A105 RF Blind Flange,ANSI B16.47 Series A Blind Flange

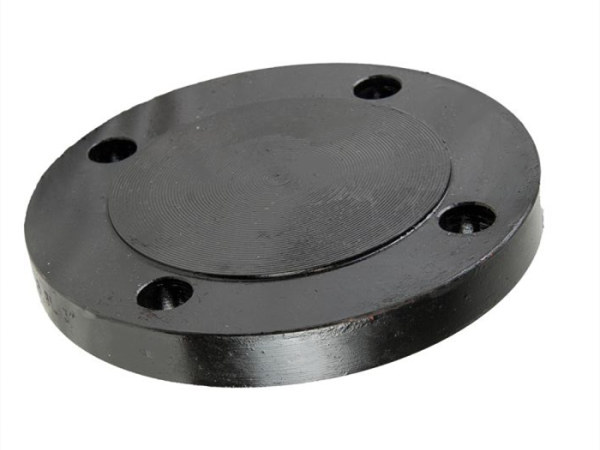

A105 RF Blind Flange is a type of forged carbon steel flange designed in compliance with the ASTM A105 specification and featuring a Raised Face (RF) sealing surface. This flange is used to close the end of a piping system or a pressure vessel opening, effectively stopping the flow of fluid. The raised face helps concentrate the gasket pressure in a smaller area, creating a tight and reliable seal. A105 RF Blind Flanges are ideal for high-pressure and high-temperature services and are commonly used in industries like oil & gas, petrochemical, power generation, and offshore drilling.

Raj Bhoomi Engineers is a leading manufacturer, stockist, and exporter of A105 RF Blind Flanges based in India. The company specializes in producing high-quality forged flanges that meet global standards such as ASME B16.5, ANSI, and MSS-SP-44. Their A105 RF Blind Flanges are available in a wide range of sizes (from 1/2" to 48") and pressure ratings (Class 150 to 2500), ensuring compatibility with diverse industrial requirements. Precision-forged and machined, these flanges provide excellent sealing capabilities, dimensional accuracy, and strength under demanding conditions.

With an extensive export network, Raj Bhoomi Engineers supplies A105 RF Blind Flanges to numerous countries, including Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, the USA, Canada, and several nations across Africa and other regions worldwide. Their reputation for delivering reliable products, maintaining competitive pricing, and offering timely delivery has made them a preferred choice among EPC contractors, refineries, and industrial distributors around the globe.

All A105 RF Blind Flanges produced by Raj Bhoomi Engineers are subjected to rigorous quality control checks. These include hydrostatic testing, ultrasonic examination, positive material identification (PMI), and dimensional verification. Each flange is supplied with comprehensive test certificates like EN 10204 3.1 / 3.2, and the company can also provide third-party inspection from agencies like TÜV, BV, DNV, and Lloyd’s Register, based on client requirements.

Specification of A105 RF Blind Flange

Specification Item	Details
Product Name	A105 RF Blind Flange
Material Grade	ASTM A105 (Forged Carbon Steel)
Flange Type	Blind Flange (BL)
Face Type	Raised Face (RF)
Manufacturing Method	Forged
Standard Specifications	ASME B16.5, ANSI B16.5, MSS-SP-44, ASTM A105
Size Range	1/2" to 48" (DN15 to DN1200)
Pressure Ratings	Class 150, 300, 600, 900, 1500, 2500
Design Temperature Range	-29°C to 425°C (-20°F to 800°F)
Surface Finish (RF)	Stock Finish (125–250 AARH), Spiral Serrated
Gasket Compatibility	Spiral Wound, Soft Gaskets, Metal Gaskets
Corrosion Resistance	Moderate (can be improved with coatings or galvanizing)
Testing & Quality Control	Hydro Test, UT, PMI, Visual & Dimensional Inspection
Available Certifications	EN 10204 3.1/3.2, ISO 9001:2015, PED, IBR, NACE (if required)
Applications	Oil & Gas, Petrochemical, Power Plants, Water Treatment, Marine, Refineries
Manufacturer	Raj Bhoomi Engineers, India

The Raised Face design of these blind flanges allows for the use of spiral wound or other types of gaskets, making them especially suitable for high-integrity sealing in pressurized systems. Their forged construction gives them superior mechanical strength, resistance to deformation, and enhanced durability in extreme service conditions.

Raj Bhoomi Engineers offers high-performance A105 RF Blind Flanges that meet the stringent demands of global industrial applications. With a commitment to quality, precision engineering, and international logistics, the company continues to be a trusted name in the field of industrial flange manufacturing and exports.

A105 RF Blind Flange Chemical Properties

Element	Composition (%)
Carbon (C)	≤ 0.35
Manganese (Mn)	0.60 – 1.05
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.040
Silicon (Si)	0.10 – 0.35
Copper (Cu)	≤ 0.40 *
Nickel (Ni)	≤ 0.40 *
Chromium (Cr)	≤ 0.30 *
Molybdenum (Mo)	≤ 0.12 *
Vanadium (V)	≤ 0.08 *

A105 RF Blind Flange Mechanical Properties

Property	Value
Tensile Strength	≥ 485 MPa (70 ksi)
Yield Strength	≥ 250 MPa (36 ksi)
Elongation	≥ 22%
Reduction of Area	≥ 30%
Hardness (Brinell)	≤ 187 HB (normalized condition)
Impact Test	Not mandatory (if specified by client)
Modulus of Elasticity	~ 200 GPa (29,000 ksi)

Features of A105 RF Blind Flange

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of A105 RF Blind Flange

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 RF Blind Flange	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	ANSI B16.47 Series A Blind Flange
ANSI B16.47 Series B Blind Flange	MSS SP-44 A105 Blind Flange
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals

FAQs – A105 RF Blind Flange

1. What is an A105 RF Blind Flange?

An A105 RF (Raised Face) Blind Flange is a forged carbon steel flange designed to block the end of a piping system or pressure vessel opening, featuring a raised face surface for improved gasket sealing.

2.Where are A105 RF Blind Flanges commonly used?

They are widely used in oil & gas, petrochemical, power generation, and industrial piping systems where pipelines need to be closed for pressure testing, maintenance, or safety purposes.

3. What is the advantage of the Raised Face (RF) design?

The raised face provides a larger sealing area, enhances gasket compression, and reduces the risk of leakage under high pressure and temperature conditions.

4. What pressure ratings are available for A105 RF Blind Flanges?

These flanges are available in ANSI/ASME pressure classes 150# to 2500#, making them suitable for both medium and high-pressure services.
