Manufacturer,Stockist and Exporter of A105 Water Treatment Flange

A105 Water Treatment Flange, A105 Water Treatment Flange, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,ASTM A105 Blind Flange,ANSI B16.47 Series A Blind Flange

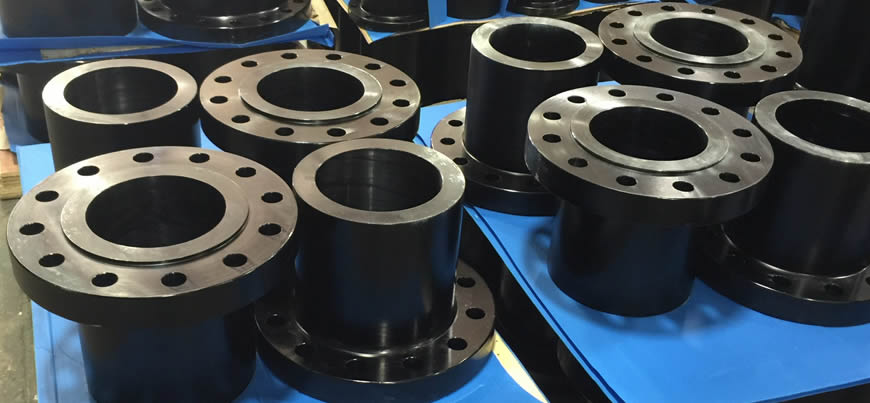

Raj Bhoomi Engineers is a renowned manufacturer, stockist, and exporter of A105 Water Treatment Flange, offering premium quality carbon steel flanges tailored for the demanding requirements of water treatment plants and fluid handling systems. These flanges are made from ASTM A105 carbon steel, known for its strength, weldability, and durability under high pressure. Engineered to provide leak-proof connections, A105 flanges play a vital role in water purification systems, desalination plants, and wastewater treatment infrastructure.

The A105 Water Treatment Flange is designed to connect pipes, valves, and other equipment within water systems securely, allowing for easy maintenance and system integrity. Raj Bhoomi Engineers offers various types of flanges such as slip-on, weld neck, blind, socket weld, and threaded to accommodate different pipe sizes and system configurations. These flanges are manufactured in accordance with global standards including ASME, ANSI, and DIN, ensuring compatibility and safety in critical water-related applications.

Raj Bhoomi Engineers exports its high-quality A105 Water Treatment Flange to multiple international markets, including Oman, Qatar, Saudi Arabia, UAE, and Kuwait, where infrastructure projects are consistently growing. In addition, the company has a strong presence in European markets like Spain and Germany, as well as North America—including the USA and Canada—and continues to serve various countries across Africa. Their export operations are backed by efficient logistics and international compliance certifications, making them a trusted partner for global water treatment projects.

As a dedicated stockist, Raj Bhoomi Engineers maintains a large inventory of standard and custom-sized A105 water treatment flanges, ensuring quick turnaround times for bulk and urgent orders. Their commitment to maintaining stock availability helps reduce lead times and supports the fast-paced nature of infrastructure and utility development projects worldwide.

Specification of A105 Water Treatment Flange

Specification	Details
Material Grade	ASTM A105 Carbon Steel
Product Type	Water Treatment Flange
Flange Types	Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint
Size Range	½" to 48" (DN15 to DN1200)
Pressure Ratings	Class 150, 300, 600, 900, 1500, 2500 (PN6 to PN400)
Standards	ASME B16.5, ASME B16.47 Series A/B, ANSI, DIN, EN, BS, JIS
Facing Options	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Connection Type	Bolted
Temperature Range	-29°C to 425°C (-20°F to 800°F)
Surface Finish	Black Paint, Anti-Rust Coated, Galvanized, or Customized
Applications	Water Treatment Plants, Desalination, Wastewater Systems, Fluid Pipelines
Testing & Certification	Hydrostatic Test, NDT, MTC (EN 10204 3.1/3.2), Third-Party Inspection
Manufactured By	Raj Bhoomi Engineers, India

Every A105 Water Treatment Flange undergoes strict quality control measures including pressure testing, dimensional accuracy checks, and certification of material traceability. The company provides full technical documentation such as Material Test Certificates (MTC) and third-party inspection reports upon request. These practices ensure that each flange delivered by Raj Bhoomi Engineers meets or exceeds international quality expectations.

Raj Bhoomi Engineers has built a solid reputation for delivering high-performance A105 Water Treatment Flange solutions across global markets. With in-house manufacturing expertise, large-scale stocking capabilities, and a strong international export network, the company continues to support water treatment and infrastructure development initiatives with reliable and durable piping components.

A105 Water Treatment Flange Chemical Properties

Element	Composition (%)
Carbon (C)	≤ 0.35
Manganese (Mn)	0.60 – 1.05
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.040
Silicon (Si)	0.10 – 0.35
Copper (Cu)	≤ 0.40 (if specified)
Nickel (Ni)	≤ 0.40 (if specified)
Chromium (Cr)	≤ 0.30 (if specified)
Molybdenum (Mo)	≤ 0.12 (if specified)
Vanadium (V)	≤ 0.08 (if specified)

A105 Water Treatment Flange Mechanical Properties

Property	Value
Tensile Strength (min)	485 MPa (70,000 psi)
Yield Strength (min)	250 MPa (36,000 psi)
Elongation (% in 2")	22% minimum
Reduction of Area	30% minimum
Hardness (Brinell, HBW)	187 max (up to 250 HB for small parts)
Impact Toughness	Not required unless specified
Test Temperature	Room temperature (unless otherwise specified)
Heat Treatment	Normalized (for flanges above 4" or for severe service)

Features of A105 Water Treatment Flange

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of A105 Water Treatment Flange

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	ANSI B16.47 Series A Blind Flange
ANSI B16.47 Series B Blind Flange	MSS SP-44 A105 Blind Flange
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals

FAQs – A105 Water Treatment Flange

1. What is an A105 Water Treatment Flange?

An A105 Water Treatment Flange is a forged carbon steel flange manufactured under ASTM A105 specifications, designed for connecting pipes and equipment in water treatment plants and distribution systems.

2.Why is A105 material used in water treatment applications?

ASTM A105 carbon steel provides high strength, durability, and resistance to pressure, making it suitable for pipelines carrying treated, raw, or process water under varying conditions.

3. Where are A105 Water Treatment Flanges commonly installed?

They are used in water treatment plants, desalination units, filtration systems, wastewater treatment facilities, and municipal water supply pipelines.

4.What pressure ratings are available for A105 Water Treatment Flanges?

They are manufactured in ANSI/ASME Classes 150# to 2500#, depending on the pressure and flow requirements of the water treatment system.
