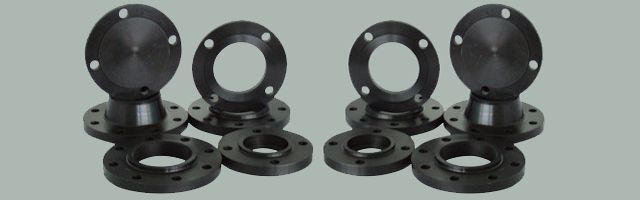

Manufacturer,Stockist and Exporter of Carbon Steel Flange Specifications

Carbon Steel Flange Specifications, Carbon Steel Flange Specifications, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,Carbon Steel Flange Specifications,Carbon Steel Flange Specifications

Raj Bhoomi Engineers is a reputable manufacturer, stockist, and exporter of high-quality Carbon Steel Flanges, offering an extensive range of flange dimensions tailored for diverse industrial applications. Known for its precision-engineered products, the company supplies flanges that adhere to international standards such as ASME B16.5, B16.47 Series A & B, DIN, BS, and EN. These flanges are manufactured using premium carbon steel grades like ASTM A105, A350 LF2, and A694, ensuring durability, dimensional accuracy, and long service life.

The dimensions of Carbon Steel Flanges are critical in ensuring proper alignment, sealing, and pressure integrity in piping systems. Raj Bhoomi Engineers offers a comprehensive size range from ½ inch to 72 inches, with pressure classes that include 150, 300, 600, 900, 1500, and 2500. The standard flange dimensions include outside diameter (OD), thickness, bolt circle diameter, bolt hole size, number of bolt holes, and face type (RF, FF, or RTJ). Every flange is carefully machined to meet tight dimensional tolerances, ensuring seamless integration with pipes, valves, and fittings.

As a global exporter, Raj Bhoomi Engineers supplies Carbon Steel Flanges with standardized and custom dimensions to industries in Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, the USA, Canada, and various regions across Africa and worldwide. These flanges are used in high-pressure, high-temperature systems in sectors such as oil & gas, petrochemicals, power generation, marine, and construction. The company’s ability to provide both standard and custom flange dimensions makes it a preferred supplier for engineering firms and EPC contractors around the globe.

All flanges from Raj Bhoomi Engineers are subjected to stringent quality control procedures, including dimensional inspection, surface finish checks, pressure testing, and non-destructive testing (NDT) where required. This ensures that the Carbon Steel Flange Specifications conform precisely to client requirements and applicable design codes. The company also provides complete documentation support, including material test certificates (EN 10204 3.1/3.2), dimensional reports, and compliance certificates, enhancing customer confidence and project traceability.

Carbon Steel Flange Specifications

Specification	Details
Product	Carbon Steel Flange Specifications
Manufactured By	Raj Bhoomi Engineers
Material Grades	ASTM A105, ASTM A350 LF2, ASTM A694 F42/F52/F60/F65/F70
Types Available	Weld Neck (WN), Blind (BL), Slip-On (SO), Socket Weld (SW), Threaded (TH), Lap Joint (LJ), Orifice Flange
Standard Specifications	ASME B16.5, ASME B16.47, BS 4504, EN 1092-1, MSS SP-44, API 605
Size Range	½” to 60” (DN15 to DN1500)
Pressure Ratings	Class 150, 300, 400, 600, 900, 1500, 2500 / PN 6 to PN 64
Face Types	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Connection Type	Bolted flange connections (for pipe-to-pipe and equipment connections)
Temperature Range	-46°C to 425°C (varies by grade and pressure class)
Manufacturing Method	Forged / Rolled / Machined
Applications	Oil & Gas, Petrochemicals, Power Plants, Refineries, Marine, Water Systems
Coating Options	Anti-rust oil, Black Paint, Hot-Dip Galvanized, Custom coatings available
Testing & Certification	Hydro Test, PMI Test, UT/MPI Testing, EN 10204 3.1 / 3.2 Certification
Compliance Standards	NACE MR0175, ISO, PED (upon request)

Raj Bhoomi Engineers maintains a large stock of flanges in various dimensions and pressure ratings, allowing them to deliver urgently required components without delays. Their advanced logistics and packaging systems ensure safe and timely shipment of flanges to any part of the world. Whether it's a bulk supply to the Middle East or a custom dimension requirement from Europe or North America, the company delivers with consistency and professionalism.

Raj Bhoomi Engineers is a global leader in supplying accurate and reliable Carbon Steel Flange Dimensions, offering a wide array of options backed by quality assurance, international certification, and exceptional customer service. Their commitment to precision, compliance, and timely delivery positions them as a trusted partner in the international piping components industry.

Carbon Steel Flange Specifications Chemical Properties

Element	ASTM A105 (% max)	ASTM A350 LF2 (% max)	ASTM A694 F60 (% max)
Carbon (C)	0.35	0.30	0.26
Manganese (Mn)	0.60 – 1.05	0.60 – 1.35	0.60 – 1.35
Phosphorus (P)	0.035	0.025	0.025
Sulfur (S)	0.040	0.025	0.025
Silicon (Si)	0.10 – 0.35	0.15 – 0.30	0.15 – 0.35
Chromium (Cr)	0.30 (if specified)	0.30 (max)	0.30 (max)
Nickel (Ni)	0.40 (if specified)	0.40 (max)	0.40 (max)
Copper (Cu)	0.40 (if specified)	0.40 (max)	0.40 (max)
Molybdenum (Mo)	0.12 (if specified)	0.12 (max)	0.12 (max)
Vanadium (V)	0.08 (if specified)	0.08 (max)	0.08 (max)

Carbon Steel Flange Specifications Mechanical Properties

Property	ASTM A105	ASTM A350 LF2	ASTM A694 F60	Unit
Tensile Strength	≥ 485	≥ 485	≥ 515	MPa
Yield Strength	≥ 250	≥ 250	≥ 415	MPa
Elongation	≥ 22	≥ 22	≥ 21	%
Reduction of Area	≥ 30	≥ 30	≥ 30	%
Hardness (Brinell)	≤ 187	≤ 197	≤ 235	HB
Impact Toughness	Not Required	≥ 27 J @ -46°C	Optional (on request)	Joules
Temperature Range	-29°C to 425°C	-46°C to 345°C	Varies based on application	°C

Features of Carbon Steel Flange Specifications

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of Carbon Steel Flange Specifications

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	Carbon Steel Flange Specifications
Carbon Steel Flange Specifications	Carbon Steel Flange Specifications
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals

FAQs – Carbon Steel Flange Specifications

1. What specifications are Carbon Steel Flanges manufactured to?

They are typically produced according to ASTM A105 / A350 LF2 / A694 F42–F70 for material grades and ASME B16.5 / B16.47 for dimensional standards.

2.What pressure ratings are available for Carbon Steel Flanges?

They are manufactured in pressure classes ranging from 150#, 300#, 600#, 900#, 1500#, up to 2500# as per ASME/ANSI standards.

3. What sizes are Carbon Steel Flanges available in?

Standard sizes range from ½ inch to 60 inches (DN15–DN1500), with larger custom sizes available on request.

4. Can Carbon Steel Flanges be supplied with special coatings or treatments?

Yes, they can be provided with galvanizing, epoxy coating, PTFE lining, or anti-rust oiling for enhanced durability and corrosion resistance.
